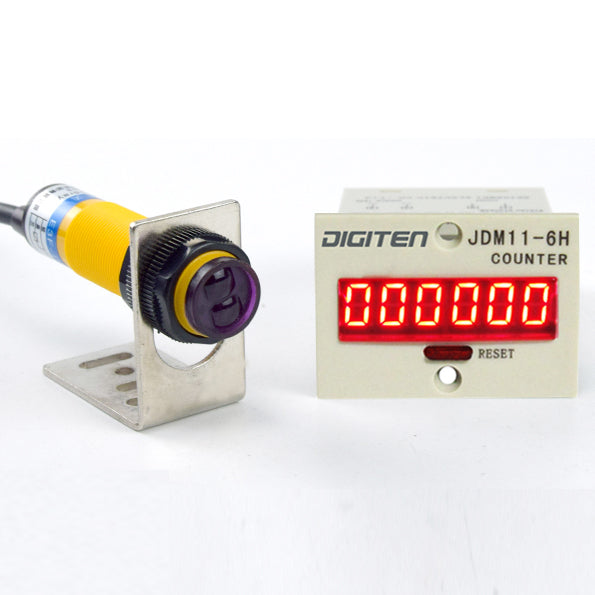

DIGITEN 0-999999 12-24VDC Digital LED Counter +PhotoElectric Switch Sensor +Reflector Automatic Conveyor Belting

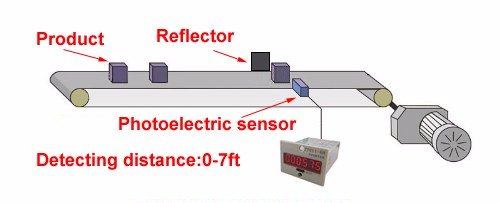

Stronger photoelectric sensor come with reflector, detection distance up to 2m, it worked great and it is very accurate when detection distance is 7ft. This kit can detect most of object, for example, metal,plastic,glass,book,clothes,bag,wood,people,etc. Panel built in manual reset button. And it come with sensor mounting bracket. it is very easy to install.

Features & Specifications

Power supply: DC12-24V
Counter Current: Approx.60mA

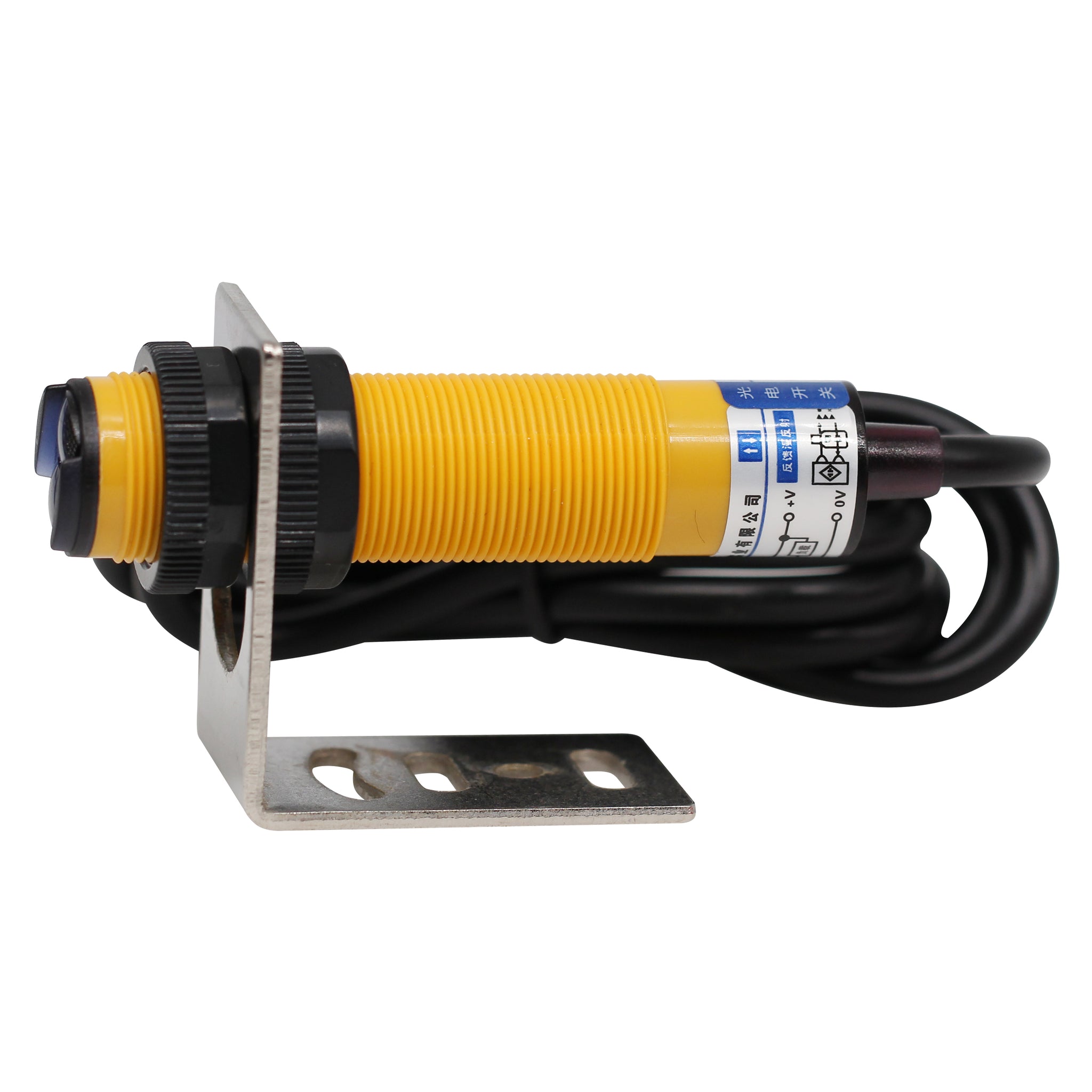

Infrared photoelectric switch sensor: NPN 3 wires normally open,NO,6-36VDC
trigger mode: rising edge

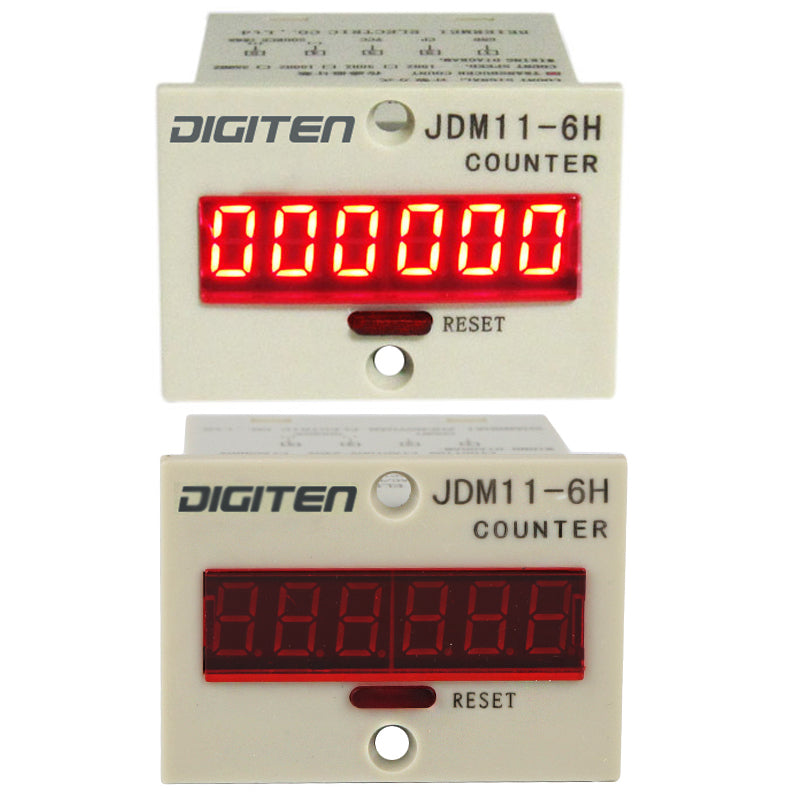

Display: 0.56" RED LED,6 digits.
Response frequency: 100HZ
Counting method: Plus or UP
Display range:0-999999
Reset: manual
Detection distance: 0-6ft(0-2m)
Sensor cable length:1.2m(4 ft)
Power lead: 1.5m(5ft), US plug

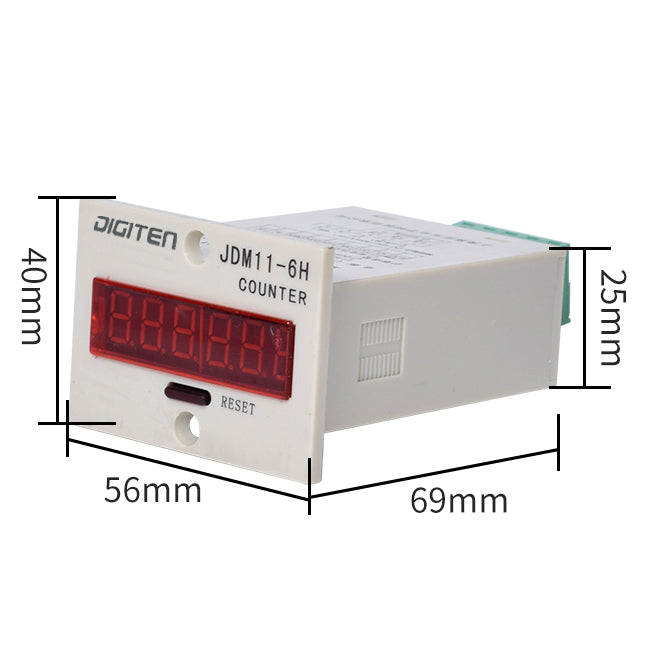

Overall dimension: 57mm*40mm*85mm
Panel cutout dimension:51mm*27mm
Sensor head dimention: M18x70mm.
Reflector dimention: 6mm*5mm*0.8mm
The meter retain the number automatically when power cut off.
Sensor wiring:brown---Power+; blue---Power-;black---signal.
Counter operating temperature: 0 to 50℃.
Sensor working temperature: -30-70C(non condensing:-30%RH-- +95%RH)

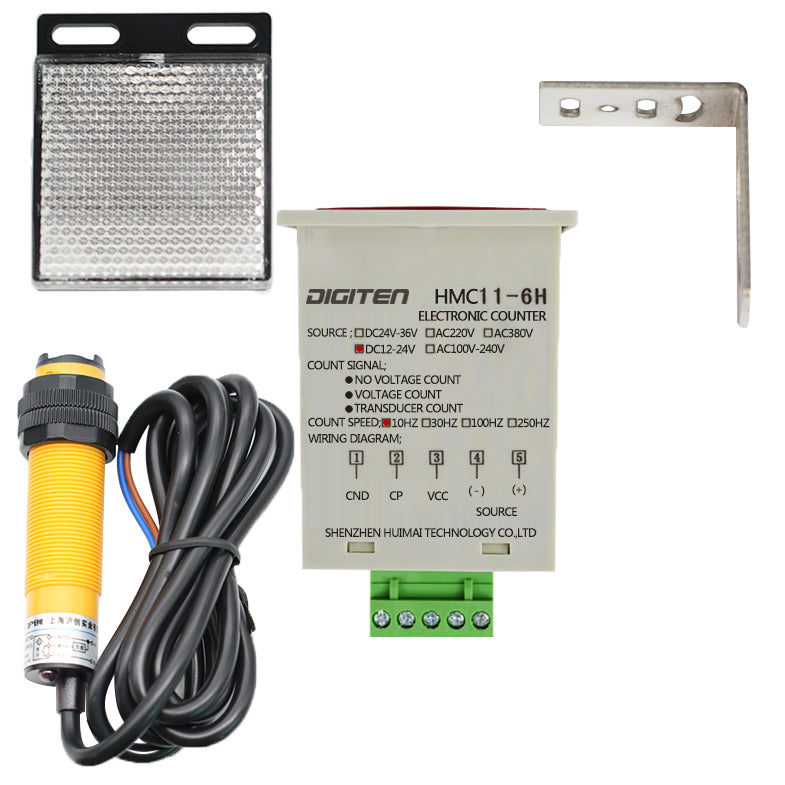

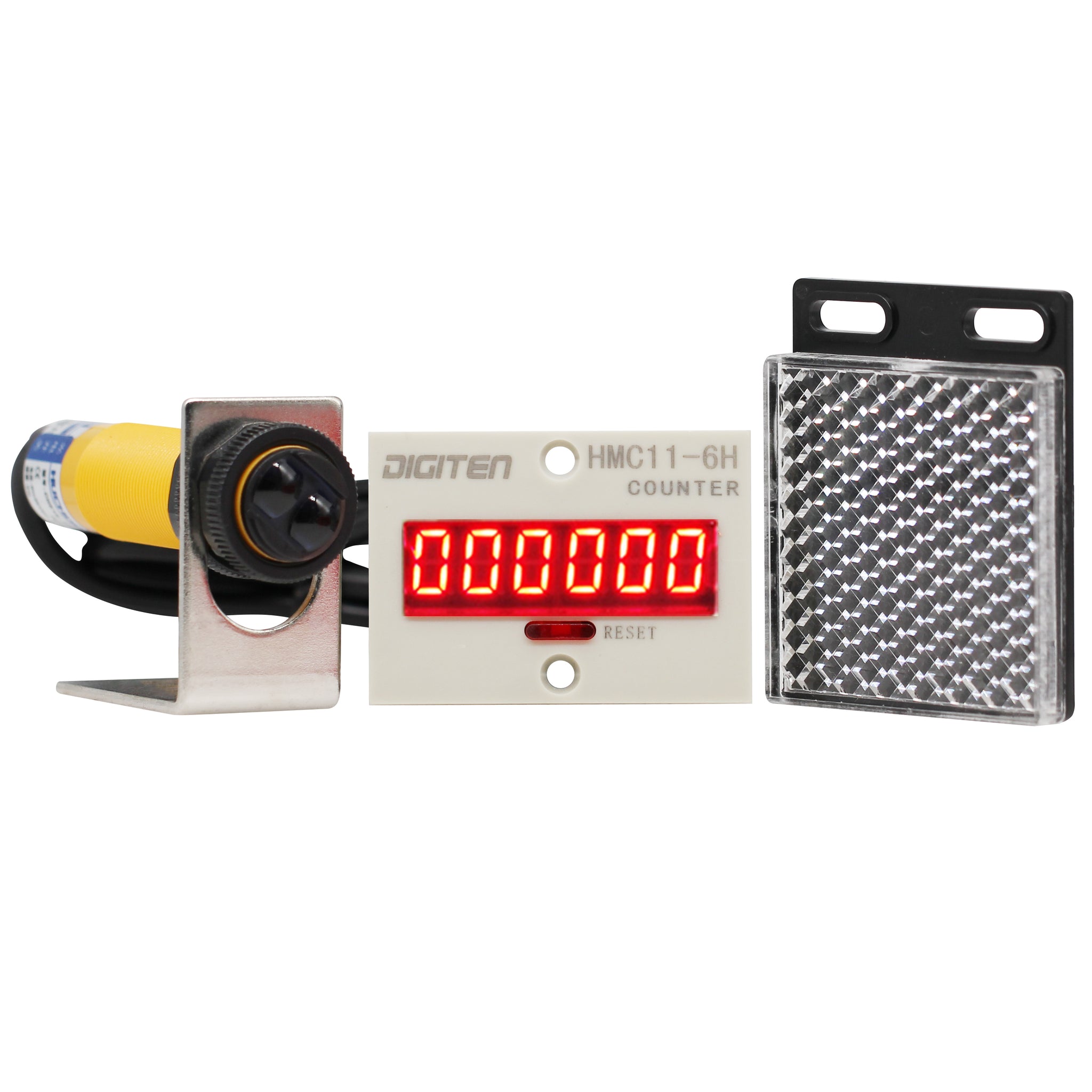

Packaging include

6 Digits red counter x 1
Photoelectric sensor x 1
Reflector x 1
Power plug wire x 1
Sensor mounting holder x 1
Instruction x 1
