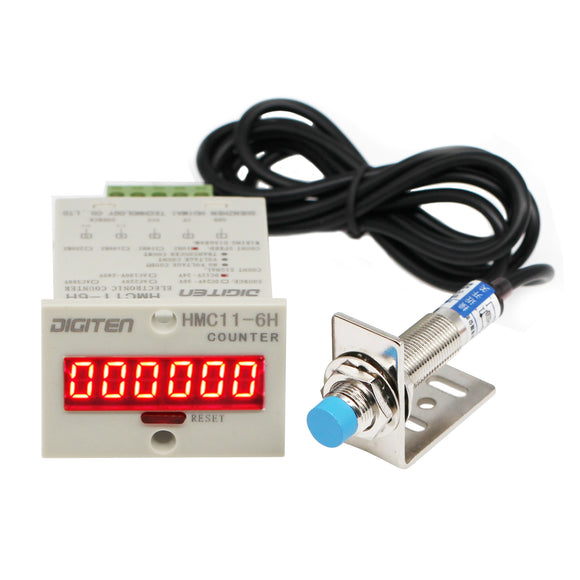

DIGITEN 24V-36V 6-Digit 0-999999 LED Display Digital UP Counter+Inductive Proximity Switch NPN Sensor+Holder
HMC11 series electronic accumulative counter, adopts low power integrated circuit, high bright LED Display with clear appearance. It has power off memory without machine damage, durable enough. It is widely used to production line counting, flow counting, rotation counting, length counting, times counting and such occasions.
Specification
Power supply: 24-36VDC
Power consumption: Approx.10W
Range: 0-999999
Counting speed: 10 times/s
Inductive Proximity Switch: Pusle signal,NPN 3 wires normally closed, Lenth is 1.2m
Reset time: 0.5s
Reset method: Panel button,manual
Detection range: 3-5mm
Detected objects: Iron
Cutting size: 38.5x27.5mm
Working temp: 0-50 ℃
Data storage: 10 years
Power wire length: 1.2m
Packaging list
1 x HMC-6H counter
1 x Hall sensor
1 x Sensor holder
Specification
Power supply: 24-36VDC
Power consumption: Approx.10W
Range: 0-999999
Counting speed: 10 times/s
Inductive Proximity Switch: Pusle signal,NPN 3 wires normally closed, Lenth is 1.2m
Reset time: 0.5s
Reset method: Panel button,manual
Detection range: 3-5mm
Detected objects: Iron
Cutting size: 38.5x27.5mm
Working temp: 0-50 ℃
Data storage: 10 years
Power wire length: 1.2m
Packaging list
1 x HMC-6H counter
1 x Hall sensor
1 x Sensor holder
