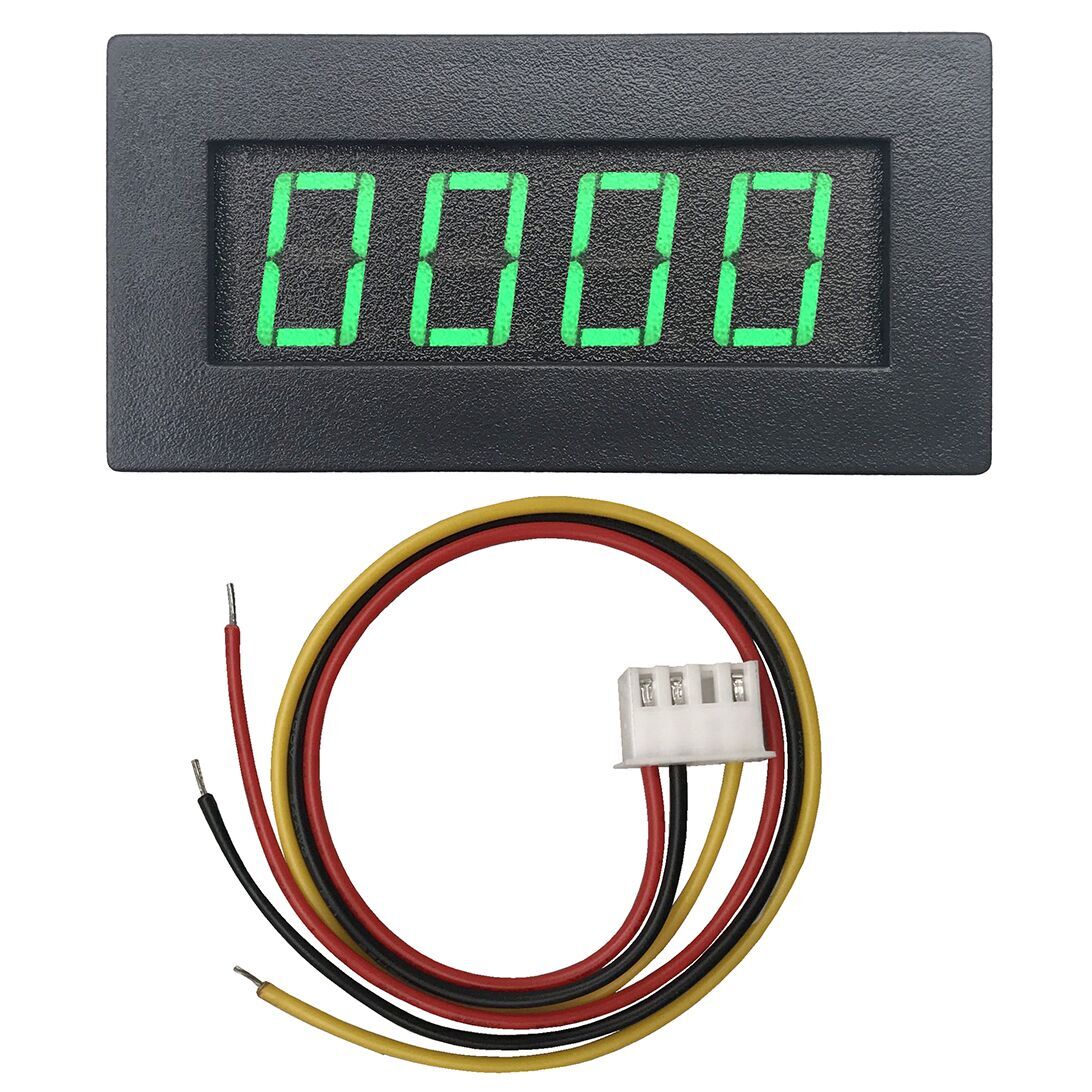

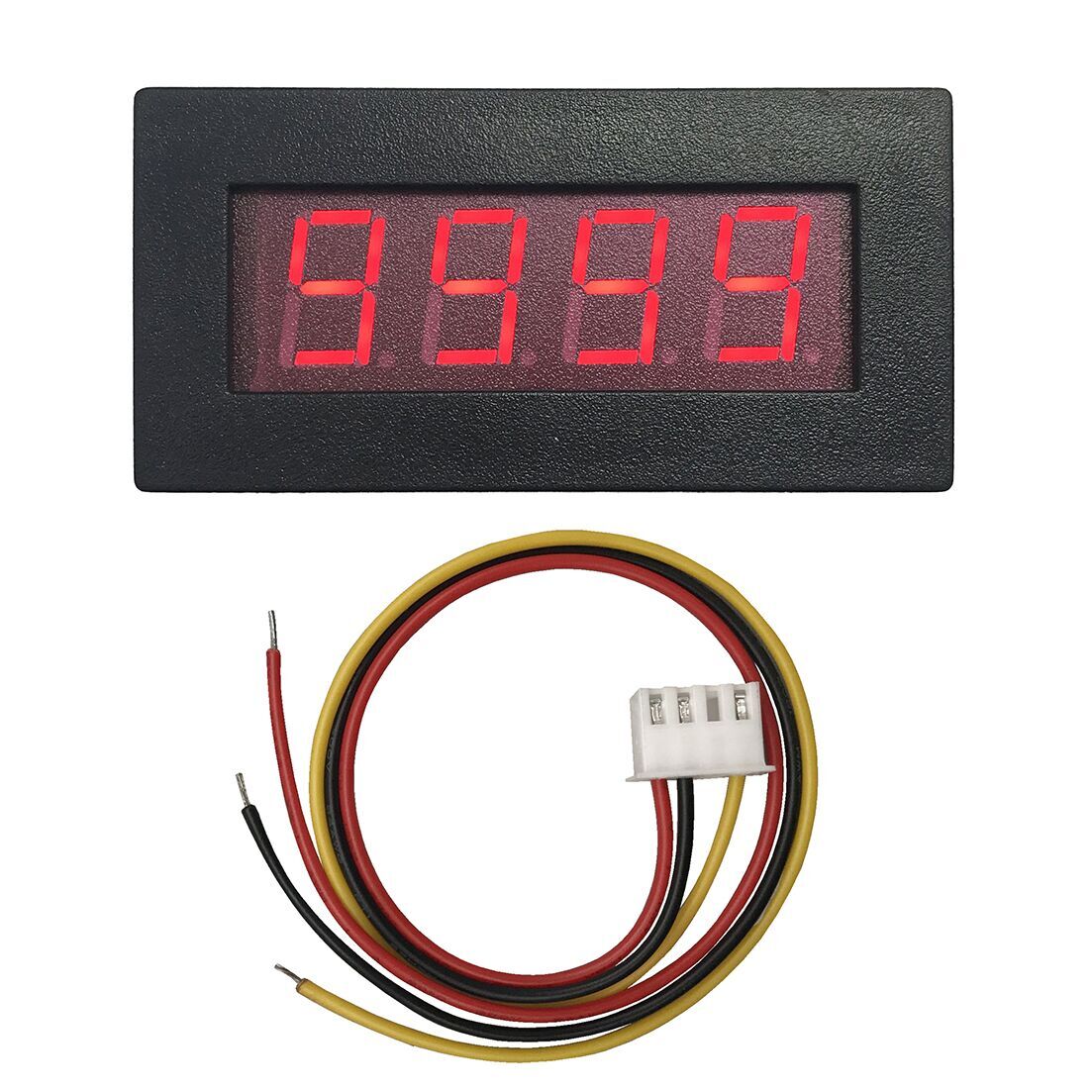

DIGITEN Digital RPM Tachometer Speed Measure Meter 4 Digit LED
Power requirement:DC 8-15V
Measure range : 5-9999RPM.
Clear zero: Automatic.
Clear zero time:about 10s.the greater the RPM value,the longer the clear zero time.
Refresh frequency: 0.2-0.5S@120-1200RPM;0.25-0.06S@2400-9999RPM.
Measure indication:RPM<5000,¡À2;RPM>5000,¡À3.
Display:RED 0.56¡± LED
Input sign:Pusle signal,wet contactor signal,PNP or NPN proximity switch,HALL sensor.

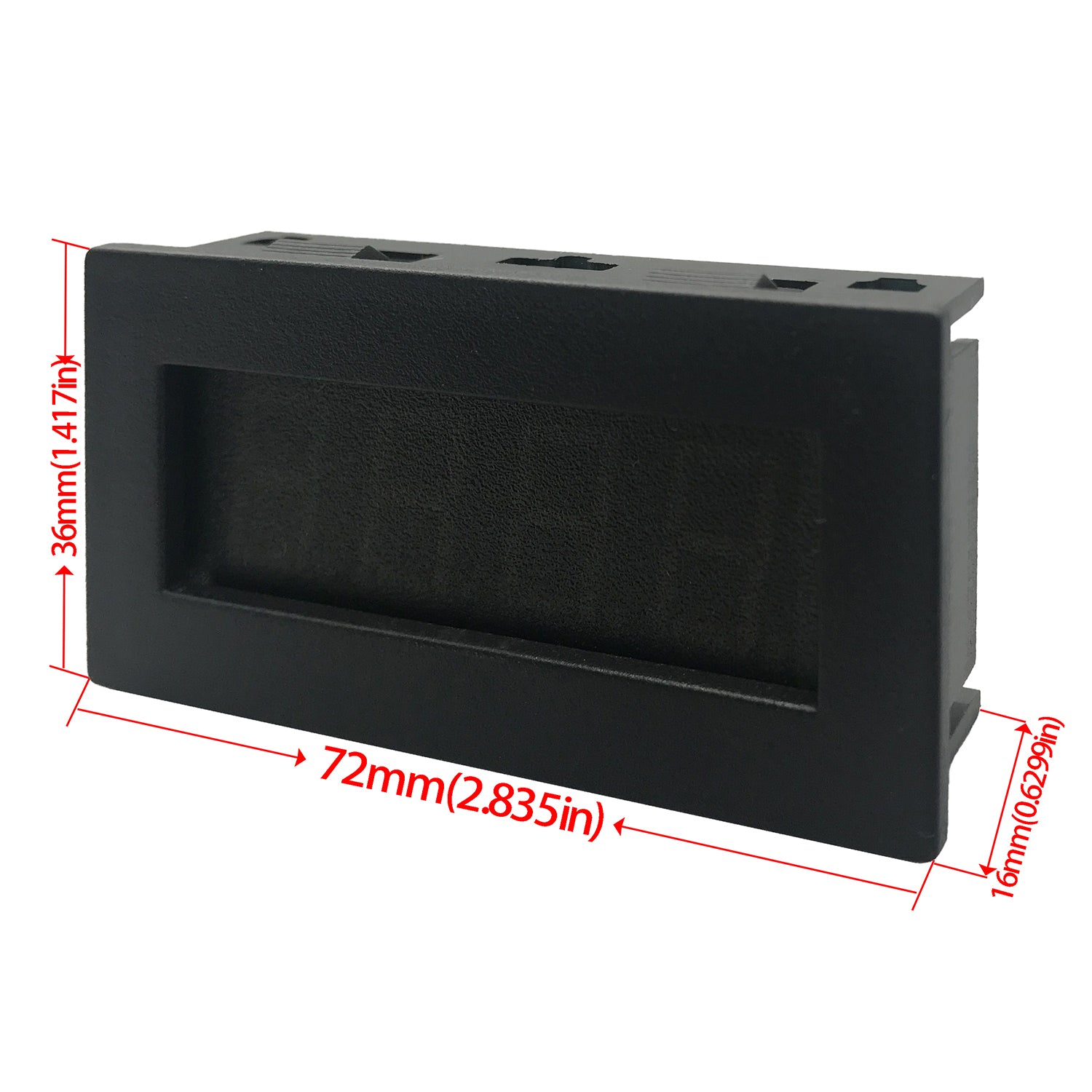

Dimension:72x36x20mm,panel cutout Dimension:68x33mm
Operating temperature: 0 to 50¡ãC.
Packaging include:
Tachoneter x 1 (with 3pin cable)
Instruction x 1
Measure range : 5-9999RPM.
Clear zero: Automatic.
Clear zero time:about 10s.the greater the RPM value,the longer the clear zero time.
Refresh frequency: 0.2-0.5S@120-1200RPM;0.25-0.06S@2400-9999RPM.
Measure indication:RPM<5000,¡À2;RPM>5000,¡À3.
Display:RED 0.56¡± LED
Input sign:Pusle signal,wet contactor signal,PNP or NPN proximity switch,HALL sensor.
Dimension:72x36x20mm,panel cutout Dimension:68x33mm
Operating temperature: 0 to 50¡ãC.
Packaging include:
Tachoneter x 1 (with 3pin cable)
Instruction x 1
