DIGITEN G1" Water Flow Control LCD Display+Flow Sensor Meter+Solenoid Valve+24V power

DIGITEN

  • $82.29
    Unit price per
Shipping calculated at checkout.


This LCD controller can monitor water flow rate,total flow,can control quantitative flow.you can re-setting quantitative flow,when flow reach to the number that you set.the controller will send singal to valve,turn off water flow and alarm automatically.

Fratures:
Easy to install,size is small.
Can connect to flow sensor,temperature sensor,solenoid valve.monitor gases,liquid flow.quantitative flow control,total flow alarm.
Monitor real-time flow rate.
Display temperature of the liquid.need to extra add temp sensor.
Control quantitative flow.when flow reach to the presetting flow,system will output signal to solenoid valve(ON/OFF).
Monitor total flow,total flow alarm.
Password can protect setting value.
When flowmeter is working,faucet dynamic display.
You can set K constant for various of flowmeters.

Specification:
Power adapter: input AC100-240V; Output: DC24V
Working volt: DC24V±8V/1A
Flow range:1-60L/min
LCD size:3 inch,built-in backlight.
Viewing Angle:0-120 degree.
Solenoid valves working voltage:DC12V/0.3-0.5A(NC)
Controller case size:103x77x35mm,Controller cutout size:98x73mm.

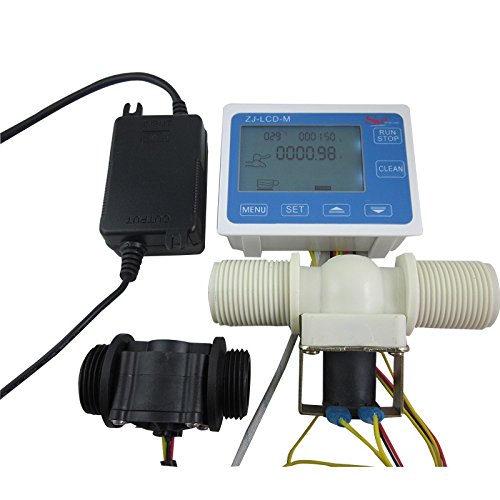

Package Includes:

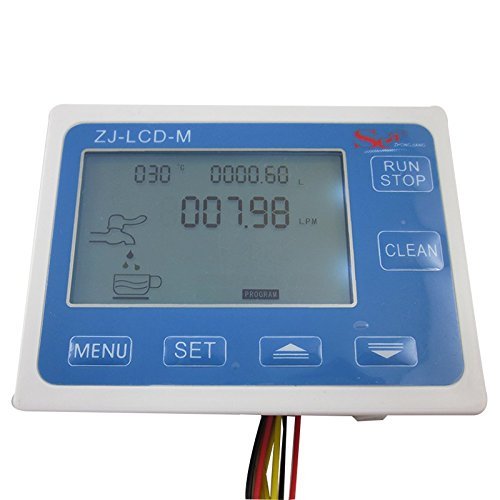

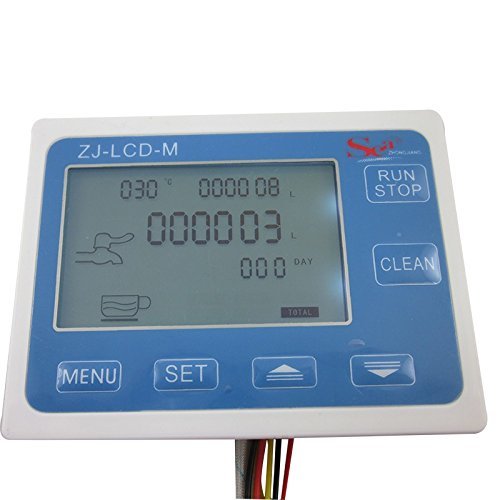

1 x LCD flow display controller

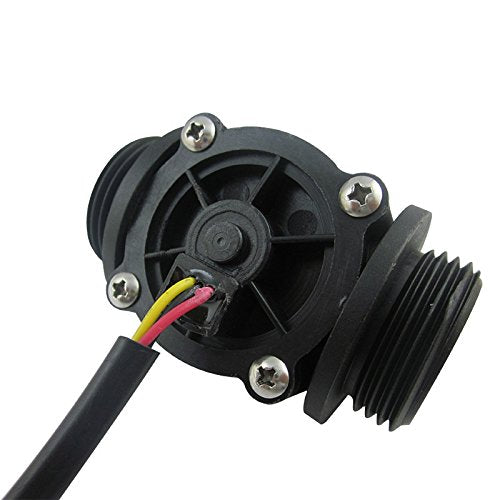

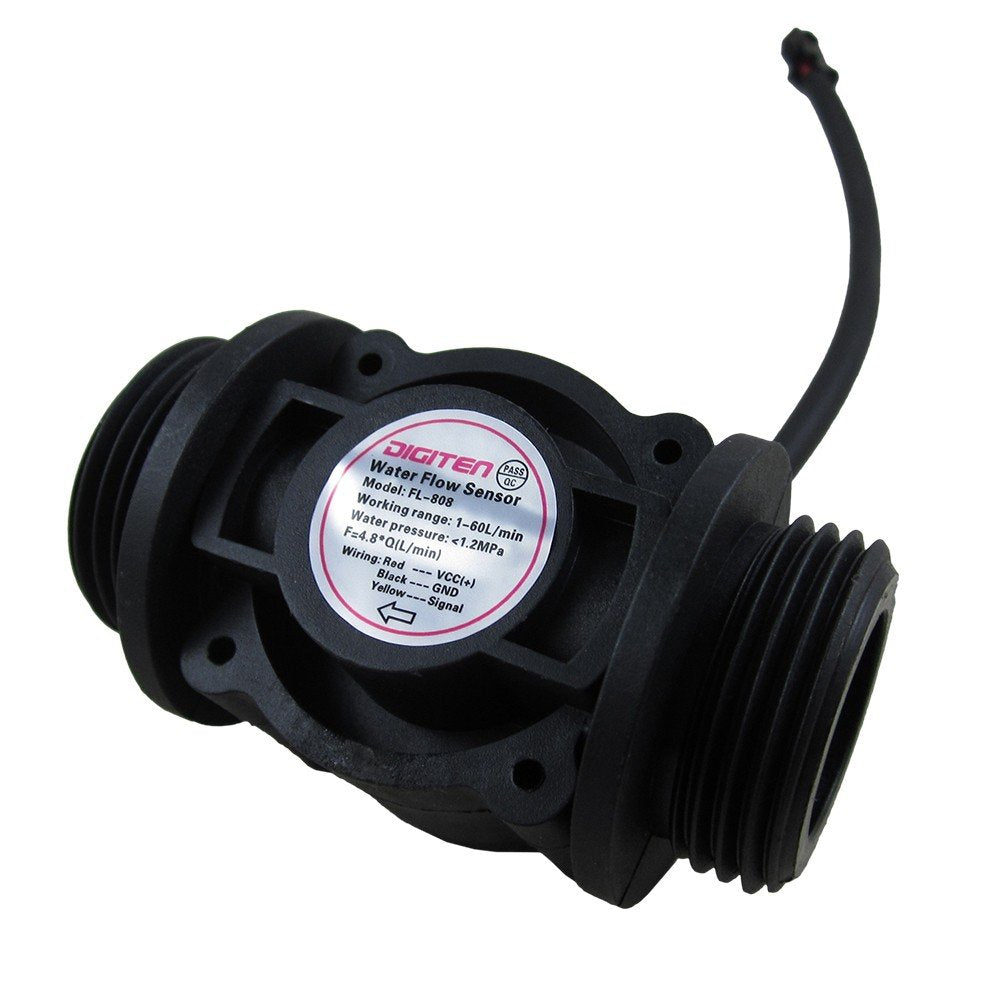

1 x G1" flow sensor

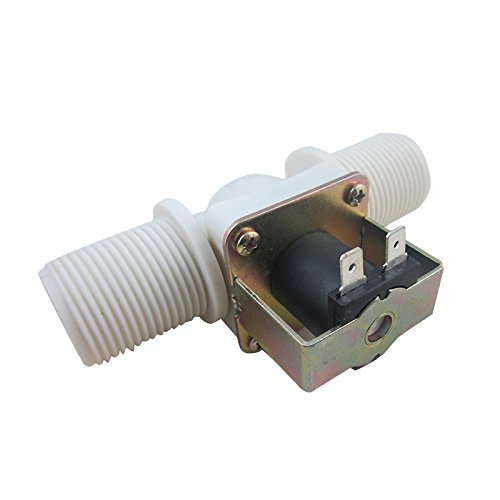

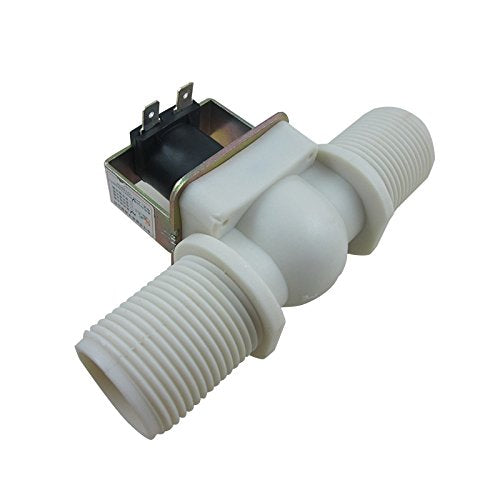

1 x G1" solenoid valve
1 x AC100-240V power adapter
1 x Temperature sensor
1 x Instruction
