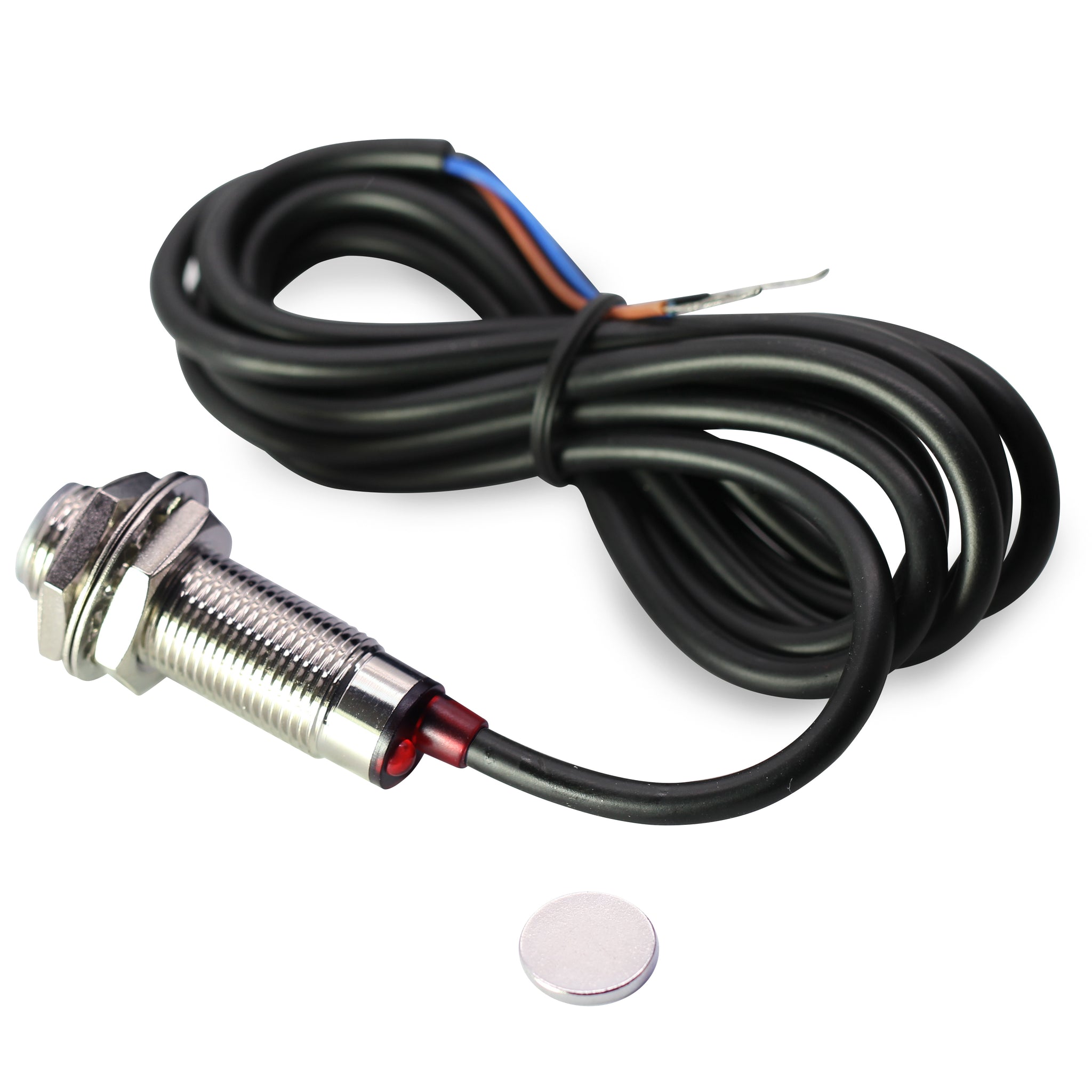

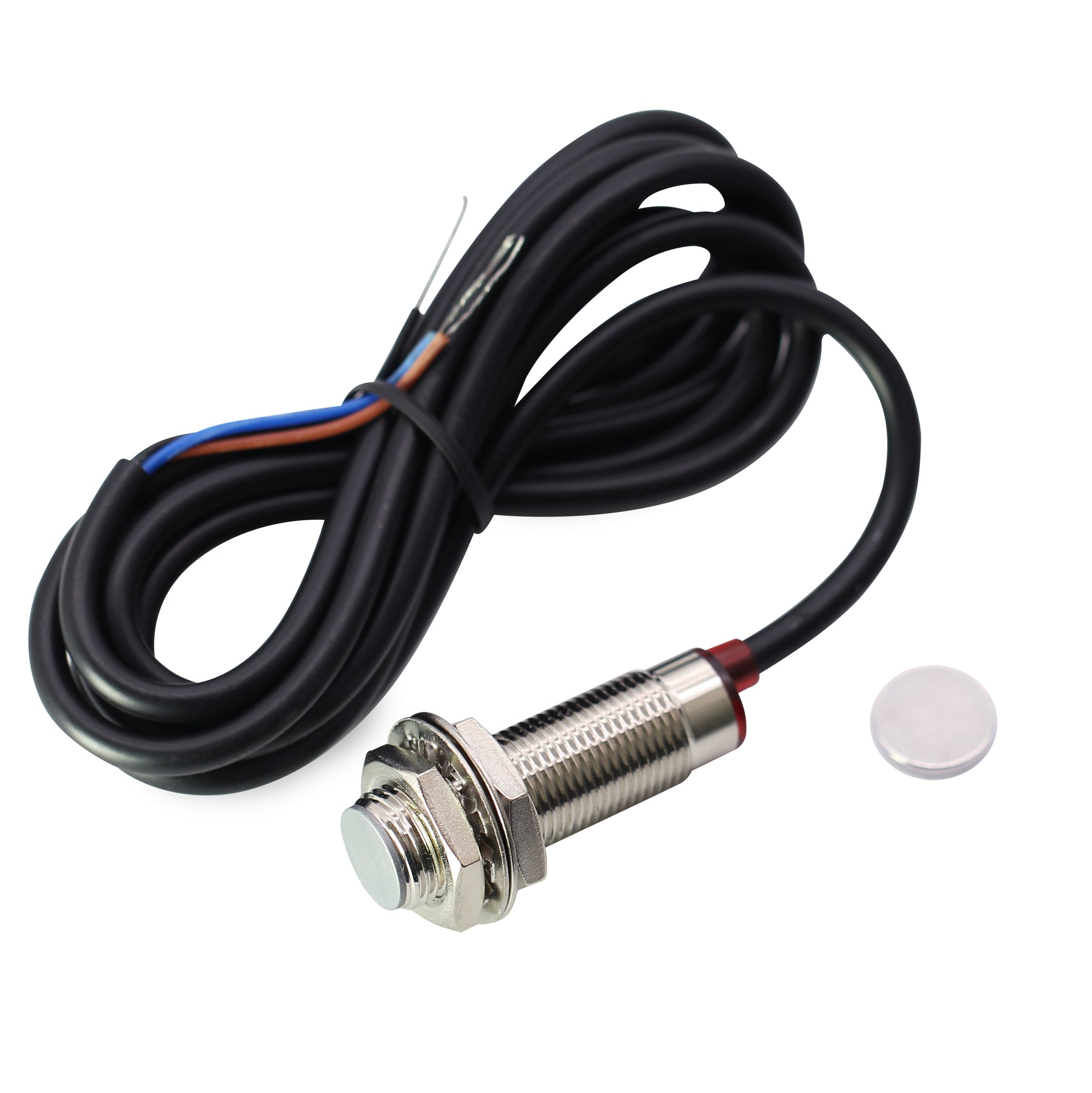

DIGITEN Hall Sensor Proximity Switch NPN 3-Wires Normally Closed NC with Magnet

DIGITEN Hall Sensor Proximity Switch NPN 3-Wires Normally Closed NC with Magnet

DIGITEN

$6.29
Unit price per

Shipping calculated at checkout.

Features & Specifications

Power requirement:6-36VDC
Output type: NPN 3-wires normally closed
Model:NJK-5002C
Appearance:M12mm cylinder.
Detection range: 10mm
Output current: 200mA

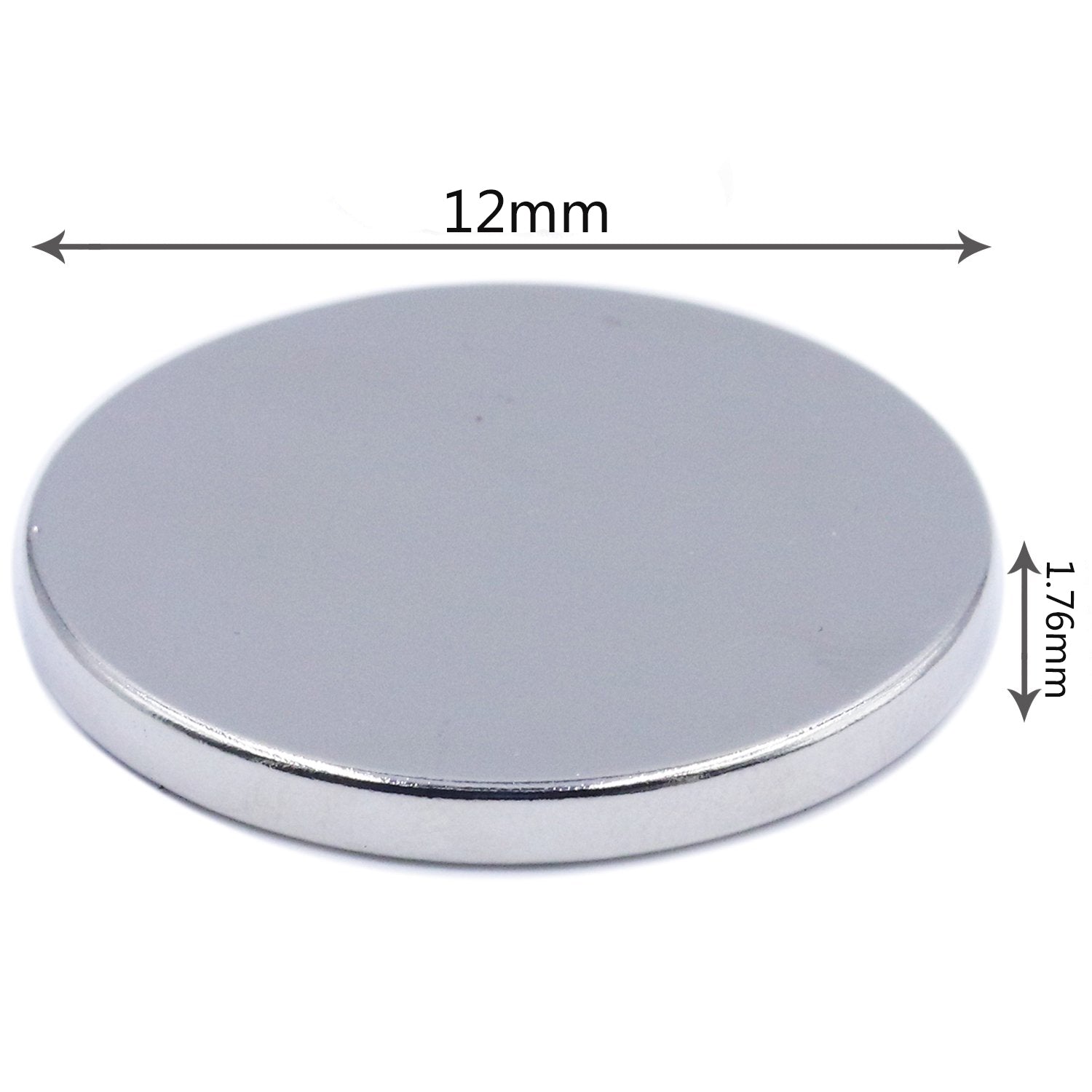

Detected objects: magnet
Switching frequency: 320KHZ

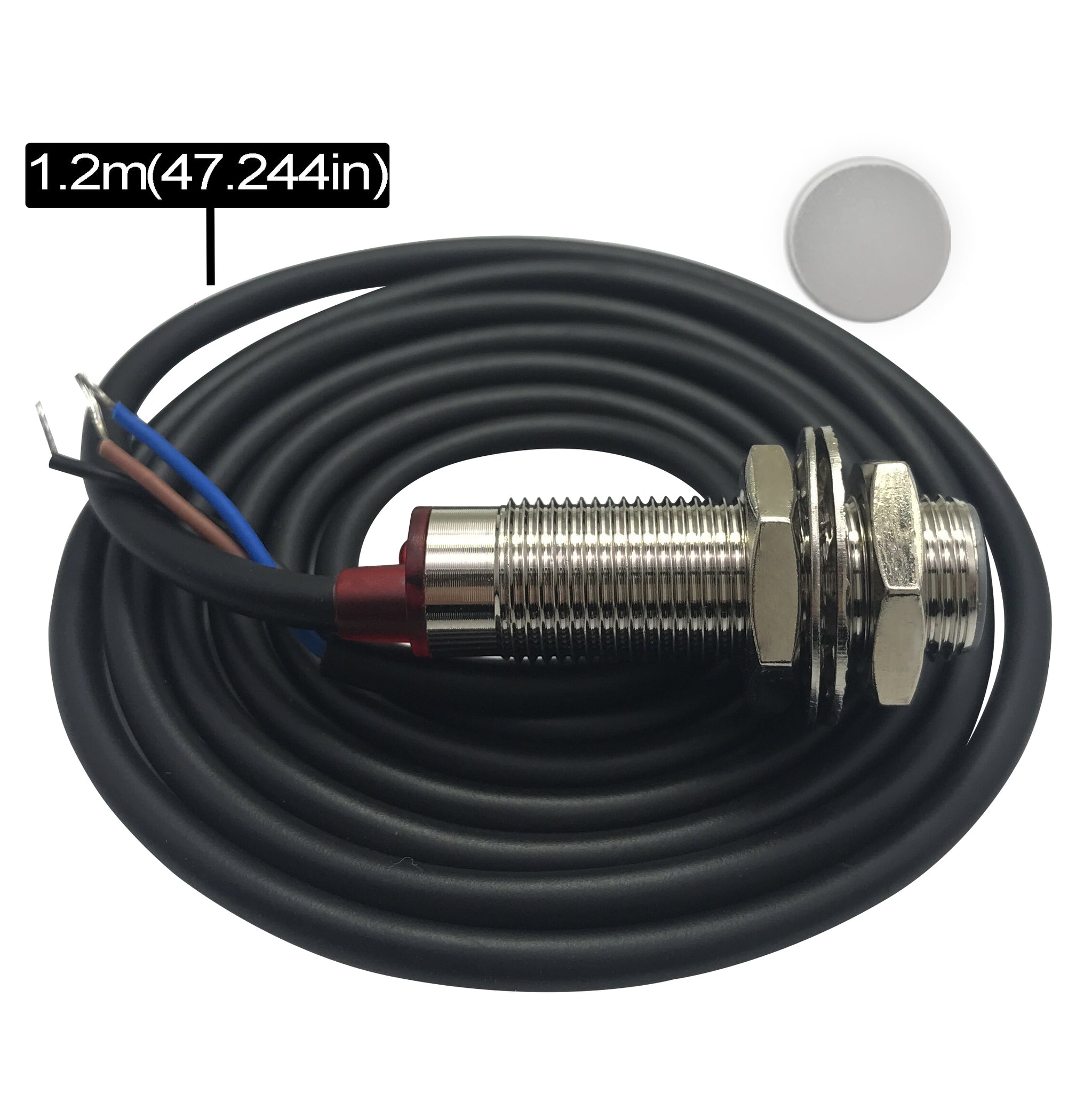

Cable length:1.1m

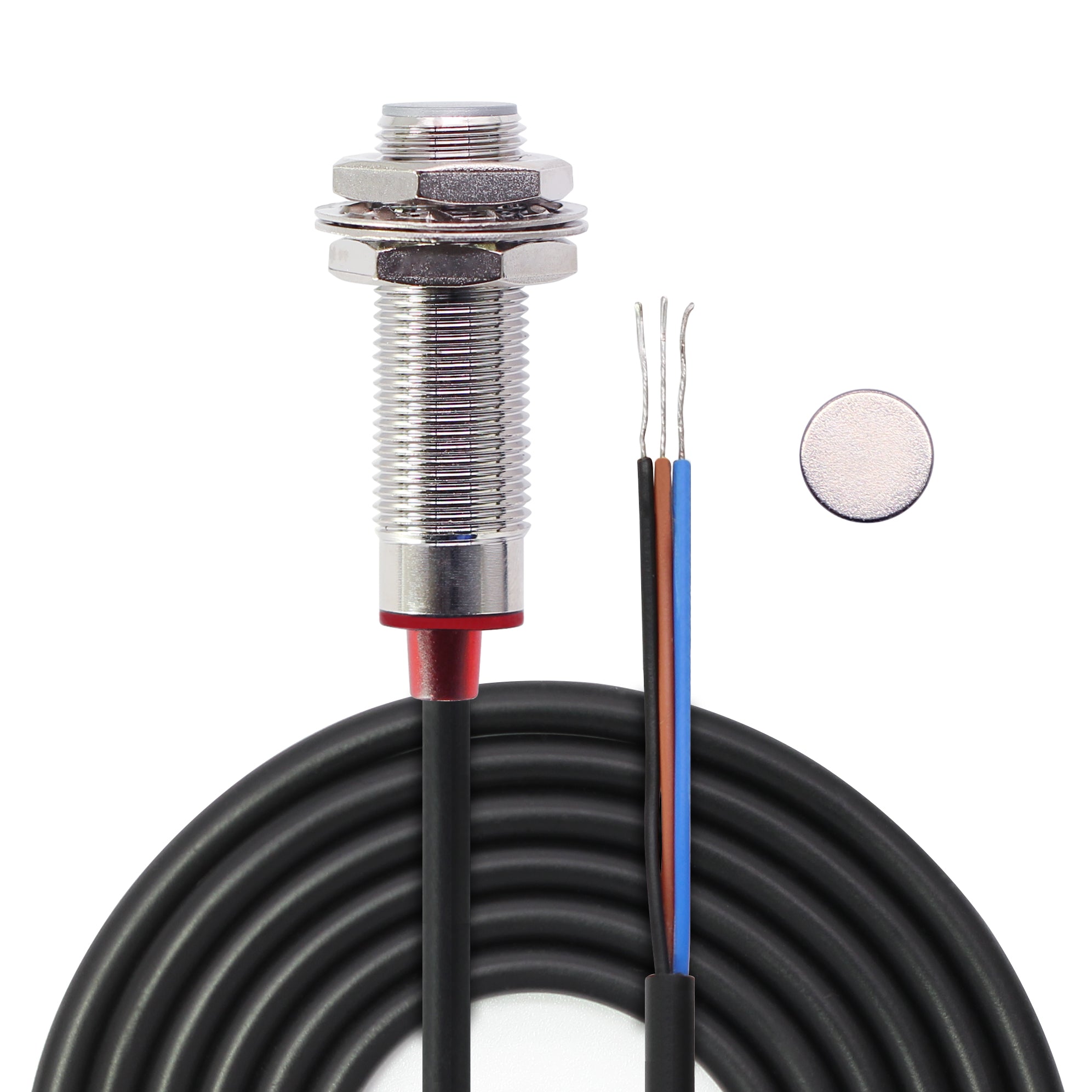

Wiring:brown-Power+;blue-Power-;black-signal.

Packaging include

Hall sensor switch x 1
