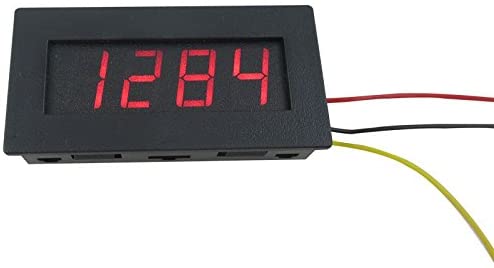

DIGITEN Car Motorcycle 4 Digital Motor Tachometer Speed Measure Meter 5-9999 RPM LED Red

DIGITEN

  • $12.99
    Unit price per
Shipping calculated at checkout.


  • Power requirement:DC 8-15V
  • Measure range : 5-9999RPM
  • Work with 1-6 cylinders engine
  • Digital RED LED
  • Dimension:72x36x20mm

The tachometer is small,cost-effective.it fit 5-9999 RPM speed motor,it can accurately measure the RPM of the engine and the various motors.it meet 1-6 cylinders engine.(note: we have not 3 pin jumper, if you have to short pin1,2 and 3, please short with wire)

Specifications:

Power requirement:DC 8-15V
Measure range : 5-9999RPM.
Clear zero: Automatic
Clear zero time:about 10s.the greater the RPM value,the longer the clear zero time.
Refresh frequency: 0.2-0.5S@120-1200RPM;0.25-0.06S@2400-9999RPM.
Measure indication:RPM<5000,¡À2;RPM>5000,¡À3.
Display:RED 0.56 inch LED

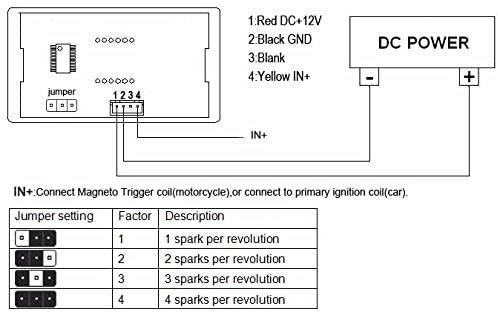

Input sign:Pusle signal,wet contactor signal,PNP or NPN proximity switch,HALL sensor.
Dimension:72x36x20mm,panel cutout Dimension:68x33mm
Operating temperature: 0 to 50¡ãC.
